Goong Tail Thread
Specialized in Ropeless Tail Threading system.
Technology originated from First-Class OEM in the world; The main technical team are from Voith and Valmet.
Tailor-made Tail threading solution
Tail Threading System Overview
A standard Tail Threading System usually includes:
Tail Cutter
Lifting Device
Rotary Cutter
Conveyor
The tail is then threaded to the next threading device or into a rope nip.
Ropeless Tail Thread
Air blade
Vacuum Conveyor
Design Structure - Tail Blade
Much safer and smooth tail transfer, no manual threading
Shorten Tail threading time
Increase threading efficiency
Each group in Dryer section is individually controlled to blow air during threading
3 Guide element: blow
air for stable transfer
of the paper tail
2 Blow air
pulsed for fixing
and acceleration
1 Blow air for
pick-up of the paper
tail from the cylinder
Design Stucture- Vacuum Conveyor
Vacuum caused by special design Venturi nozzle
Special design rotary blade to cut tail effectively
Control Conveyor belt rotation speed by frequency
converter motor
Suck tail tightly and transfer tail smoothly
Tail cutting quickly and completely without delay
Accurately control Conveyor belt rotation speed by frequency convertor motor
Tail threading successful rate 99.8%

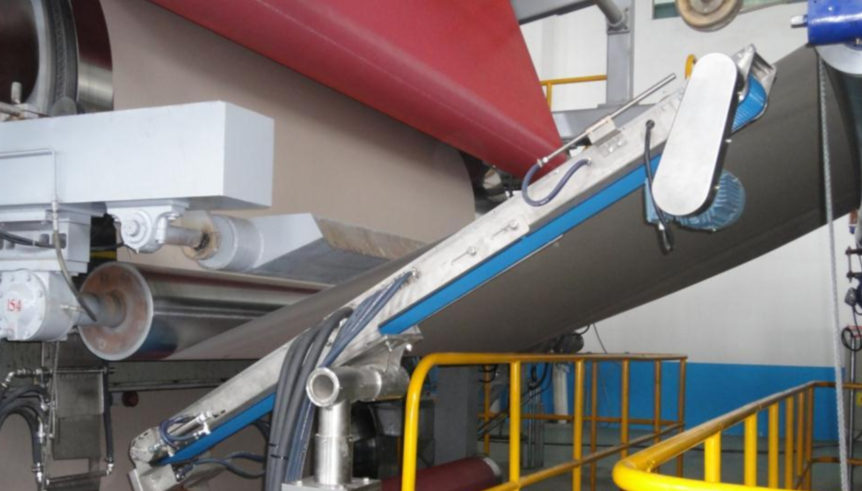

Vacuum Conveyor
Rope Standard Components
Reference List
